Generator Sets
AVANT KE
Oil
Gás
25 year
warranty

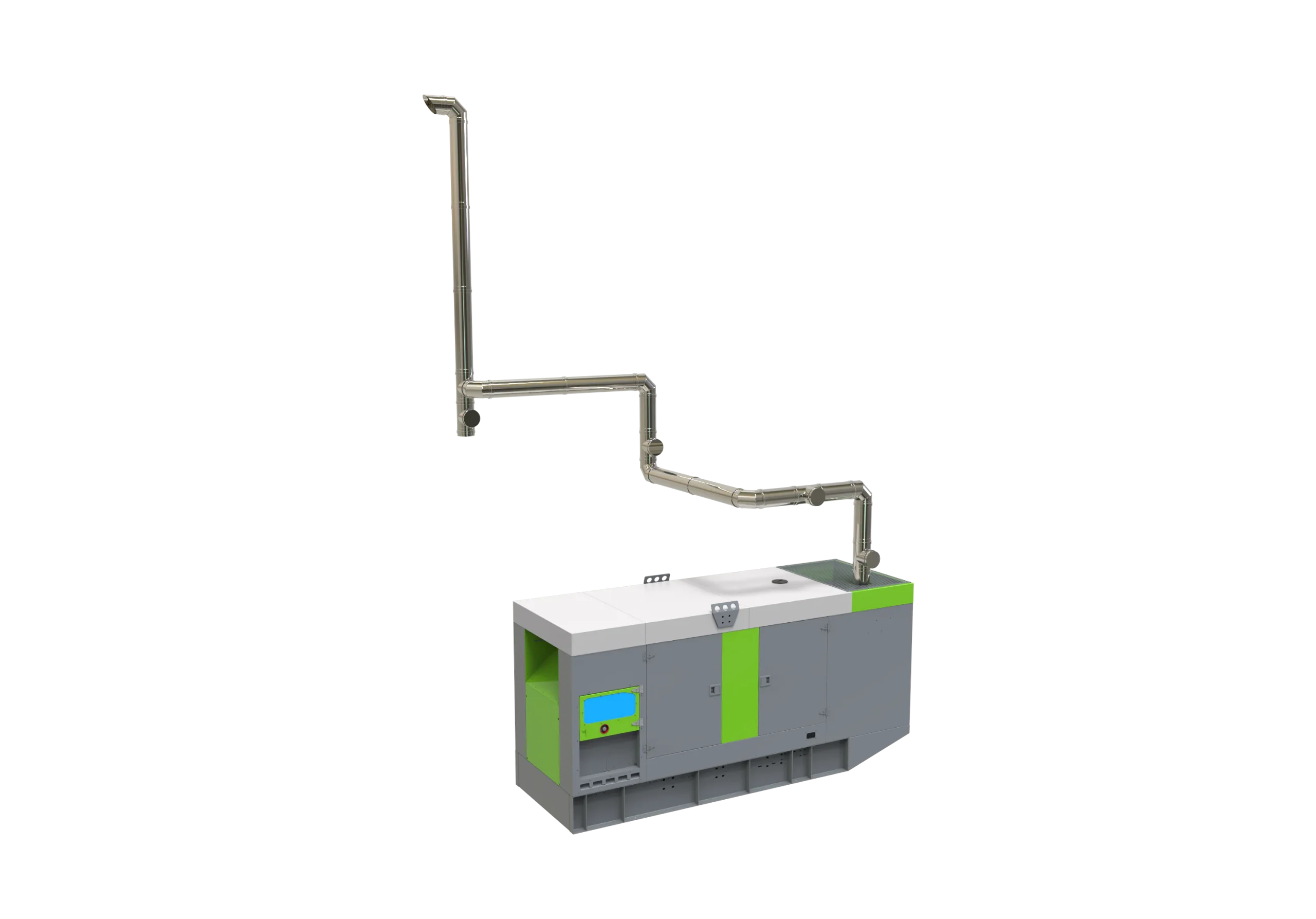

Double-wall chimney for generator sets
Generator sets produce very hot gases at high positive pressure (up to 5,000 Pa) and are often part of emergency or business continuity systems. They therefore require chimneys specifically designed for this type of operation.
The KE range is designed for gas- or oil-fired generator sets. Its insulated double-wall construction ensures efficient gas evacuation and withstands high temperatures without losing performance.
The KE range is designed for gas- or oil-fired generator sets. Its insulated double-wall construction ensures efficient gas evacuation and withstands high temperatures without losing performance.
Console plate
Jet cap
Elbow 45°
Tee 90°
Pipe 0,25 m
Adjustable base support 50-80 mm
Description:
AISI 304 stainless-steel inner and outer walls. Rockwool insulation with a density of 128 kg/m3 and a thickness of 25 mm. No thermal bridge and a flange-free joining system. For installation of this chimney, a sealant must be used in accordance with the installation instructions provided by CONVESA. Indoor and outdoor installation.
Uses:
Generator-set installations and emergency systems in commercial buildings, industrial support installations, logistics centres and equipment with occasional operation.
Applications:
For boilers or generator sets under positive pressure (up to 5,000 Pa) operating in dry conditions and using gas or oil as fuel.
Designation:
EN 1856-1 T600-H2-W-Vm-L20040/050/060-O (60)
Distance from combustible materials:
• Ø80 to Ø300 = 60 mm
• Ø350 a Ø450 = 90 mm
• Ø500 a Ø600 = 120 mm
• Ø600 a Ø700 = 240 mm
• Ø350 a Ø450 = 90 mm
• Ø500 a Ø600 = 120 mm
• Ø600 a Ø700 = 240 mm
